Roll center is one of those suspension topics that everyone talks about - but most people only understand it in theory. The real challenge is that roll center is geometry, and geometry is hard to visualize from words alone. That is exactly why we built the GripDial Roll Center Tool.
It is a front view roll center visualizer that shows the instant centers (IC) on each side, draws the construction lines to the centerline, and outputs your roll center height live while you adjust pivot points. You can also toggle between double wishbone and MacPherson strut layouts to understand how each suspension type behaves.
What Roll Center Actually Is (Plain English)
In the simplest terms: roll center is the point that helps describe how your suspension reacts lateral load. When the car corners, the tires generate lateral force at the contact patches. Your suspension links have to transmit that force into the chassis.
The roll center is a geometric point in the front view that comes from your control arm (or strut) angles. It is not a physical part you can touch. It is the result of where those suspension link lines intersect when extended.
Why Roll Center Height Matters
Roll center height influences several things that drivers actually feel:
- Roll couple - the lever arm between CG and roll center that creates body roll
- How much spring and bar you need to control roll
- Jacking forces - geometric “lift” or “drop” forces created by link angles
- Balance and response - how quickly the chassis takes a set and how stable it feels mid-corner
A higher roll center can reduce body roll (shorter roll couple) but can also increase jacking and make grip less forgiving. A lower roll center often improves mechanical grip feel but can increase body roll and require more spring or anti-roll bar. There is no single magic number - the goal is understanding the trade-offs for your platform and use case.
Instant Center (IC) – The Missing Link in Most Explanations
A roll center calculation starts with the instant center on each side of the car:
- Double wishbone: extend the upper arm line and the lower arm line until they intersect - that intersection is the IC.
- MacPherson strut: use the lower arm line and a line that is perpendicular to the strut (through the top mount) to find the IC.
From there, you draw a line from each tire contact patch to that side’s IC. Where those lines cross the vehicle centerline is the roll center construction. The GripDial tool draws these elements visually so the “why” becomes obvious, not mysterious.

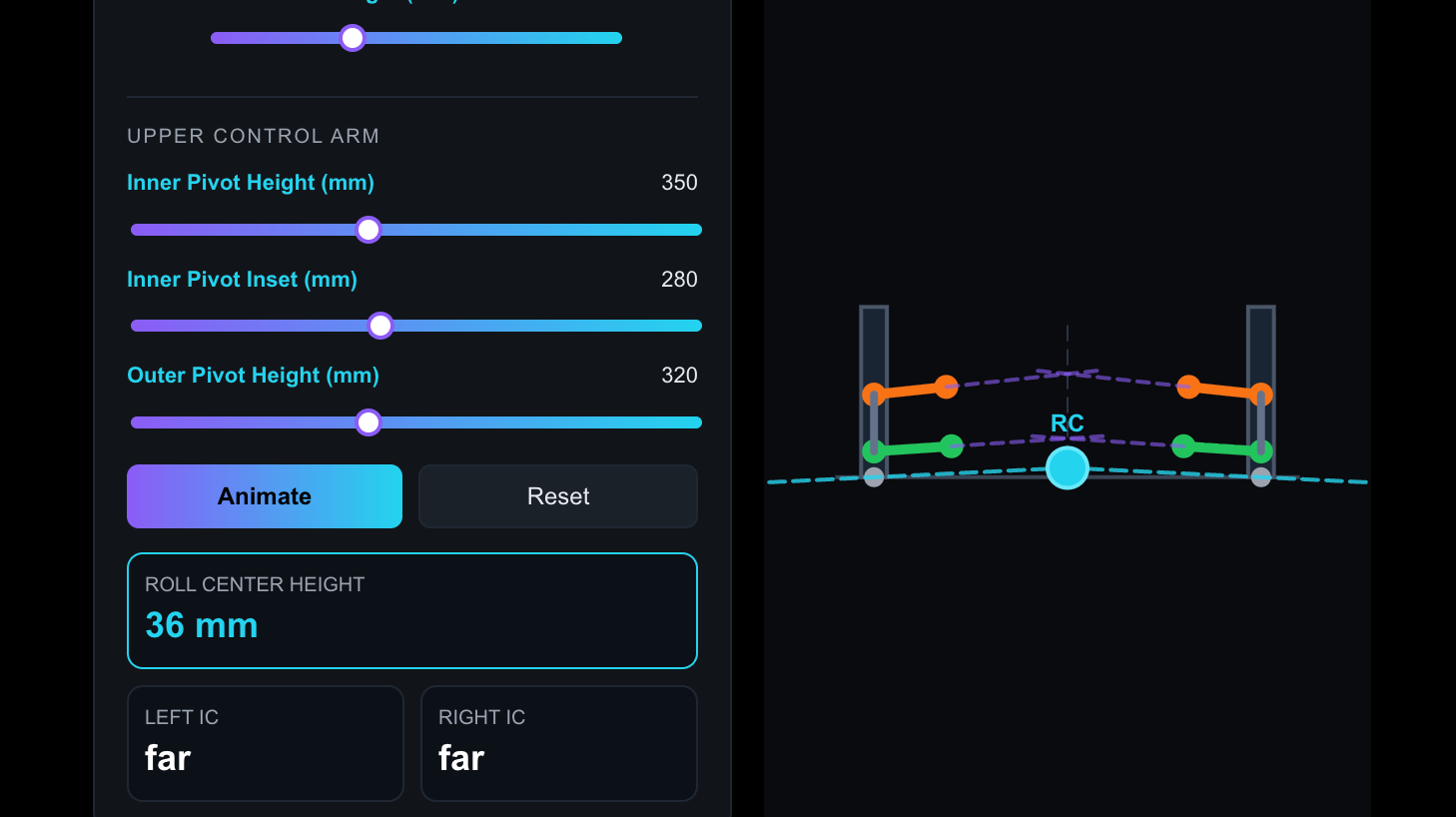

What the GripDial Roll Center Tool Does
This tool is designed to be practical, not academic. You can adjust key parameters and see the IC and RC move in real time:
- Suspension type: Double Wishbone or MacPherson Strut
- Track width: changes the geometry scale and where the contact patches sit
- Wheel radius: defines contact patch and wheel reference
- Lower control arm: inner pivot height, inner pivot inset, outer pivot height
- Upper control arm: inner pivot height, inset, outer pivot height (wishbone mode)
- Strut geometry: top mount height and inset (MacPherson mode)
- Animation: a quick way to “cycle” the suspension and watch RC stability (or instability)
The results panel shows:
- Roll center height (mm)
- Left IC coordinate
- Right IC coordinate
That combination is powerful because it helps you answer questions like: “Is my roll center stable through travel?” and “Which pivot change moves the IC the most?”
Common Roll Center Mistakes This Tool Helps You Avoid
1) Chasing a Number Without Understanding Movement
A static roll center height can look fine at ride height, but if the ICs swing dramatically in bump, your roll center can migrate quickly - which can change the car’s feel mid-corner or during transitions. Use the Animate button to see if your roll center is calm or chaotic.
2) Raising Roll Center and Accidentally Adding Jacking
A higher roll center can reduce roll, but depending on link angles it can also introduce more jacking forces. If a setup feels “skatey” or unloads a tire in odd ways, a too-high or poorly placed roll center can be part of that story.
3) Ignoring the Difference Between Wishbone and MacPherson
MacPherson struts often have more constraints on where you can place the IC compared to a true double wishbone. The tool makes it easy to compare how each architecture behaves when you change inner points or top mount position.
How to Use the Tool (Fast Workflow)
- Select Double Wishbone or MacPherson Strut
- Set approximate track width and wheel radius
- Dial in your lower arm inner height, inset, and outer height
- Dial in upper arm pivots (wishbone) or top mount location (strut)
- Watch the instant center points - do they land in a reasonable place?
- Check roll center height - then hit Animate to see stability through travel
- Make one change at a time and observe what moved: IC position, RC height, or both
This is the exact approach you want when you are designing parts, adjusting pickup points, or even just sanity-checking a geometry change. One change - one observed effect - repeat.
Use the GripDial Roll Center Tool Here
If you want to visualize roll center the way suspension engineers actually think about it, use the tool here:
Open the GripDial Roll Center Tool
Conclusion – Roll Center Is a Behavior, Not a Buzzword
The best roll center is not a single universal value. It is the one that fits your chassis, your CG height, your tire, and your goals - and stays predictable through travel. Once you can see instant centers and roll center construction clearly, suspension tuning stops being guesswork.
That is why this tool exists: to turn “roll center talk” into something you can actually visualize, adjust, and understand.
