Suspension tuning has a reputation for being complicated. People throw around spring rate numbers, click counts, and “feel” descriptors like stiff, floaty, planted, or skittish. The problem is those words are not measurements.
There is a simple reason two cars can run the same spring rate and feel completely different - their effective wheel rate, corner weight, motion ratio, and damping behavior are not the same. Once you see these relationships clearly, suspension tuning stops being mysterious and starts becoming predictable.

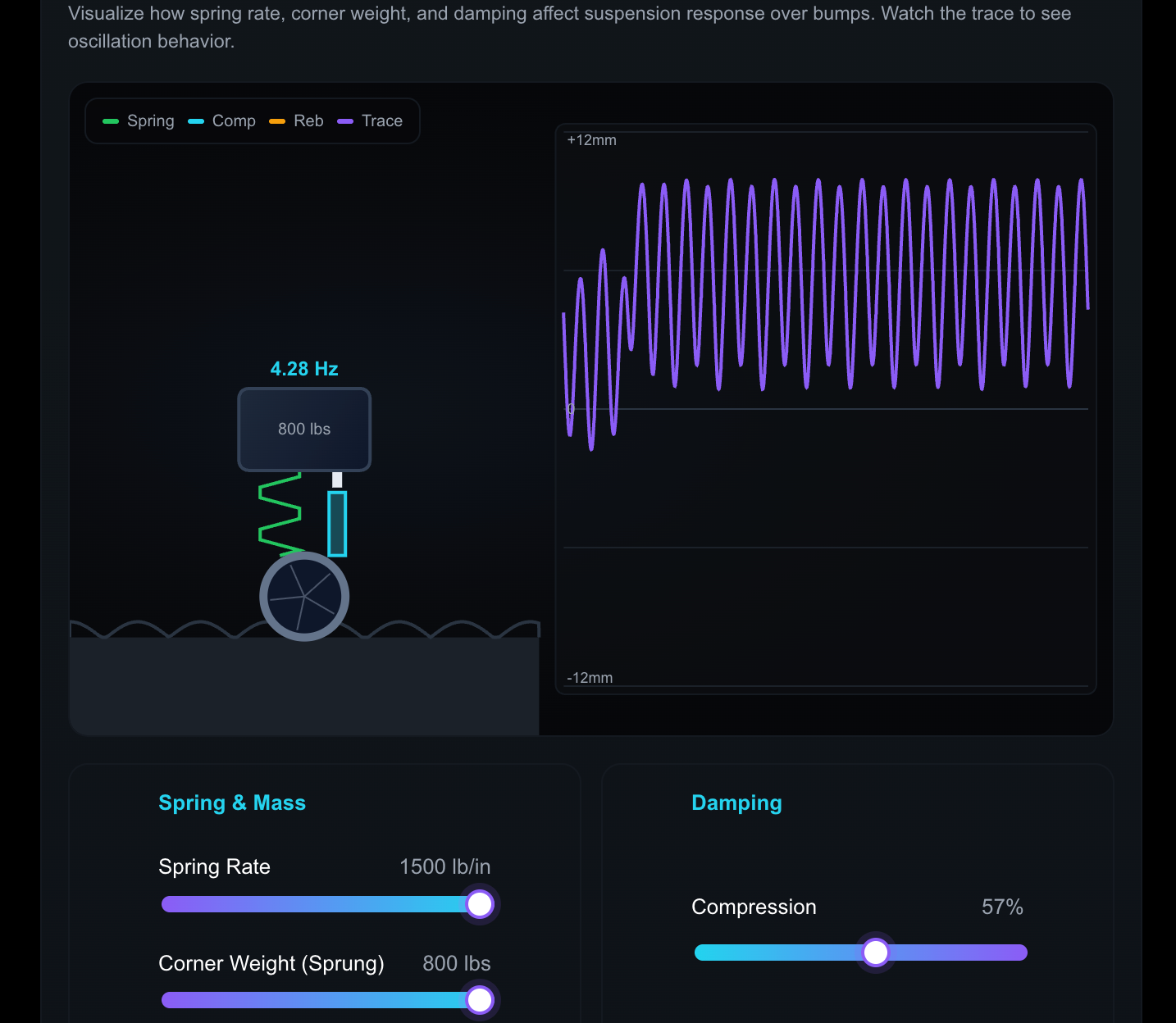

That is why GripDial built a free Suspension Frequency Visualizer - a tool that turns the core suspension physics into something you can actually watch. Instead of reading a chart and guessing, you see the response trace live, while the tool calculates the exact frequency, wheel rate, damping ratio, and settle time in real time.
Most “Suspension Advice” Skips the Part That Controls Everything
The most common mistake in suspension tuning is treating spring rate like the final answer. Spring rate is only the input.
The car does not “feel” spring rate - it “feels” the relationship between stiffness and mass, filtered through the suspension geometry. That relationship is natural frequency.
Natural frequency is not a buzzword. It is the speed of the oscillation your suspension wants to do after a bump, expressed in Hz. If you understand frequency, you understand why a setup feels nervous, why it feels lazy, and why certain cars recover quickly while others keep bouncing.
What the Tool Shows You Instantly
GripDial’s Suspension Frequency Visualizer is built to remove the gap between “numbers” and “behavior.” The tool lets you adjust the inputs that matter, and it updates the outputs that actually describe the suspension response.
- Spring rate - the base stiffness input
- Corner weight (sprung) - the mass that spring is actually controlling
- Motion ratio - the geometry multiplier that changes effective stiffness at the wheel
- Compression and rebound damping - separately, because real suspension is not symmetric
- Bump simulation controls - frequency, height, and bump shape complexity
Then it gives you what most calculators never explain in a way you can feel:
- Natural frequency (Hz) - how fast the suspension wants to oscillate
- Period (ms) - how long one full oscillation takes
- Damping ratio (ζ) - how quickly the bounce decays
- Settle time - how long it takes to stabilize after a disturbance
- Wheel rate - the real stiffness at the wheel after motion ratio is applied
Wheel Rate - The Number Drivers Think They Are Using
Wheel rate is where “spring rate” becomes real. If your motion ratio is not 1.00, your wheel rate is not your spring rate.
This is the part most people miss, and it is why forum advice can be misleading. Motion ratio changes effective stiffness by the square of the ratio.
That means if your motion ratio is 0.80, the wheel rate is not “a little less” - it is dramatically reduced. And if you change suspension pickup points or install a different arm configuration, your effective wheel rate can change even if the spring stays the same.
Natural Frequency - The Language of Suspension Behavior
Frequency gives you a direct link between setup and feel. A higher frequency generally means a more responsive, faster-recovering suspension. A lower frequency generally means a more compliant, softer response.
In drifting, frequency is especially important because a drift car is constantly shifting load - transitions, quick weight transfer, throttle-induced squat, and braking inputs all demand a suspension that can settle quickly without bouncing.
In grip racing, frequency choices can be track dependent - bumpy surfaces may benefit from a slightly lower frequency, while smooth surfaces can tolerate higher frequency for sharper response.
The value is not in chasing “high” or “low.” The value is in understanding what the number means and matching it to your surface, tire, and goals.
Damping Ratio (ζ) - The Difference Between Controlled and Chaotic
A suspension can have the correct frequency and still behave badly if damping is wrong.
Too little damping and the trace tells the story immediately - the oscillation keeps repeating after the bump. Too much damping and the car becomes slow to respond, sometimes feeling harsh and unwilling to return smoothly.
GripDial’s visualizer makes this obvious by showing the trace line over time. You do not have to guess how your clickers “should” feel - you can see whether the system is underdamped, reasonably controlled, or overdamped.
Compression vs Rebound - Why Separate Sliders Matter
Many simplified tools treat damping as one value. That is not how real dampers work, and it is not how real setups behave.
Compression controls how the suspension reacts to the bump input. Rebound controls how it returns and stabilizes.
In drifting, rebound can strongly influence how quickly weight transfers and how stable the car feels during transitions. Compression can influence how the chassis handles surface irregularities and how abruptly the tire is loaded.
Having them separated in the tool prevents the most common mistake - “adding damping” without knowing which side is causing the problem.
Bump Simulation - Turning Theory Into Something You Can Watch
Suspension behavior is easiest to understand when you can see it reacting to an input. That is why this tool includes a bump simulation with adjustable bump frequency, bump height, and bump shape complexity.
Want to model a smooth curb hit versus repeated surface chatter - you can. Want to trigger a single bump and watch the decay - you can. Want continuous bumps like a rough track section - you can.
This is where a calculator becomes a visualizer - the response becomes obvious to both casual users and technical users at the same time.
Why This Matters for Real Setup Decisions
The point of the tool is not to replace testing. The point is to make testing smarter.
When you change spring rate, you should know what that does to wheel rate and frequency. When you change corner weight, you should know why frequency shifts. When you change damping, you should know whether you are trying to control the initial response or the return.
With those relationships visible, you stop making random changes. You start making changes with intent.
Why GripDial Keeps This Tool Free
GripDial’s mission is to reduce guesswork in motorsport. Some of that happens with full telemetry, and some of that happens with foundational tools that teach the physics behind setup decisions.
The Suspension Frequency Visualizer is one of those foundation tools. It makes core suspension concepts accessible without diluting them.
Whether you are a new driver trying to understand why your car feels unstable, or an experienced team validating a direction before making physical changes, the outcome is the same - faster learning and fewer wasted iterations.
Conclusion - Stop Tuning Clicks, Start Tuning Behavior
Suspension tuning is not about copying numbers. It is about controlling motion.
GripDial’s Suspension Frequency Visualizer lets you see suspension motion, quantify it, and connect it to the inputs you actually control. Once you can visualize frequency, damping ratio, and settle time, you are no longer guessing what a setup change did.
You are building a system that behaves the way you intended.
