Caster is one of the most discussed alignment settings in drifting and motorsport, yet it remains one of the least understood.
Drivers are often told to “add caster for more steering feel” or “reduce caster to calm the car,” without ever seeing why those changes work.
GripDial’s free caster tool was built to expose the geometry behind those statements and make caster behavior visible rather than abstract.
Why Caster Is More Than a Single Number
Most alignment discussions treat caster as a standalone angle.
In reality, caster is only meaningful because of what it creates: mechanical trail.
Mechanical trail is the distance between where the steering axis intersects the ground and where the tire contacts the road. That distance is what generates self-aligning torque.
Without understanding trail, caster adjustments are guesswork.
Mechanical Trail Is What Drivers Actually Feel
Steering weight, return-to-center behavior, and on-center stability are governed by mechanical trail.
Increasing caster often increases trail, but not always in predictable ways. Hub offset, wheel diameter, and tire size all influence the final result.
GripDial’s caster tool calculates trail dynamically instead of assuming a fixed relationship.
Why Hub Offset Changes Everything
One of the most overlooked variables in caster discussions is hub offset.
Moving the hub forward or backward relative to the steering axis directly increases or reduces trail, even if caster angle remains unchanged.
This explains why two cars with identical caster numbers can feel completely different on track.
The GripDial tool allows hub offset to be adjusted independently, revealing its impact instantly.
Tire Diameter Matters More Than Most Drivers Realize
Tire diameter changes the lever arm between the steering axis and the ground.
Larger tires increase the trail contribution from caster. Smaller tires reduce it.
This is why wheel and tire changes can dramatically alter steering feel without any alignment changes.
GripDial’s caster visualizer incorporates tire diameter directly into trail calculations rather than treating it as an afterthought.
From Numbers to Visualization
Most alignment tools output numbers in isolation.

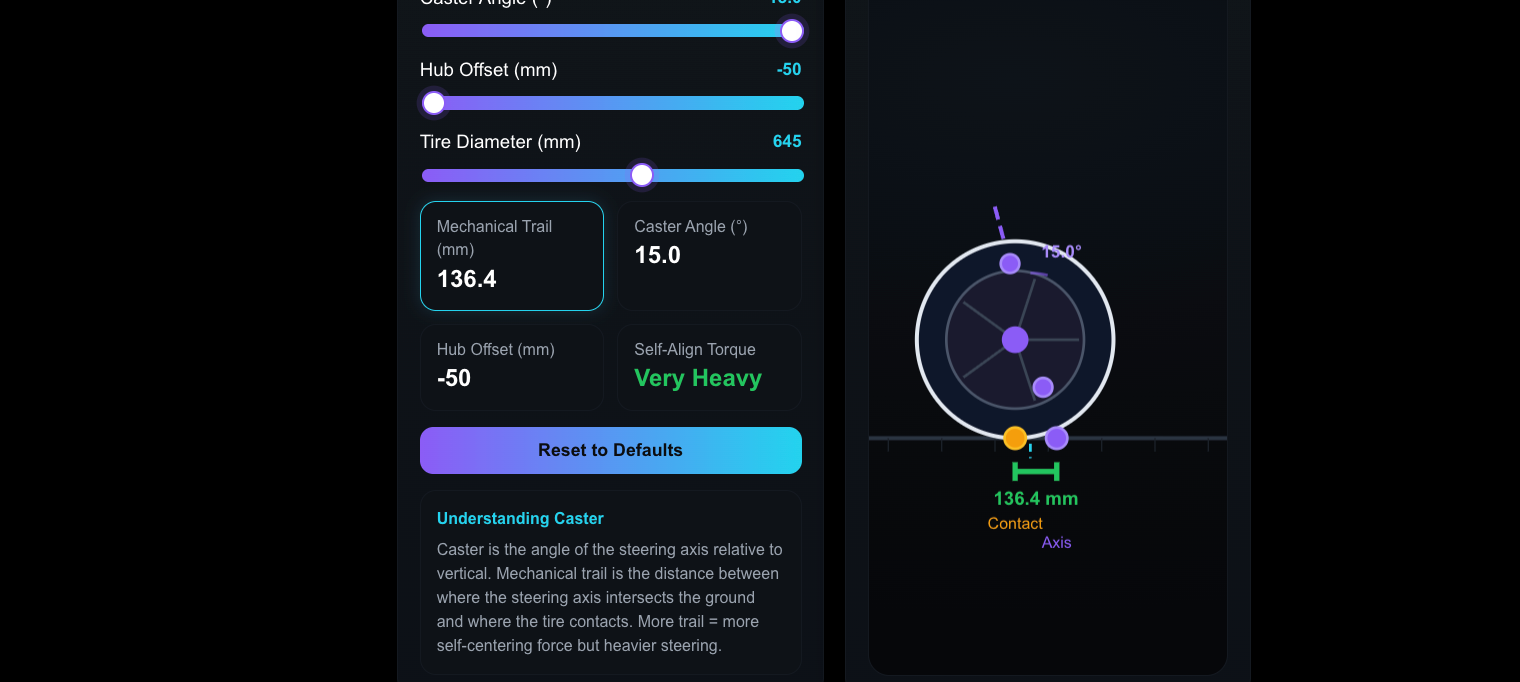

GripDial renders a scaled side-view visualization showing:
- The steering axis
- The vertical reference line
- The tire contact point
- The mechanical trail distance
This makes it immediately obvious what is moving and what is fixed.
Understanding Self-Aligning Torque
Self-aligning torque is the force that pulls the steering back toward center.
More mechanical trail increases this torque, but also increases steering effort.
GripDial classifies steering behavior into intuitive ranges such as light, normal, heavy, and very heavy based on calculated trail values.
This bridges the gap between engineering and driver feel.
Why This Matters for Drifting
Drift cars operate at extreme steering angles where small changes in self-aligning torque are magnified.
Too little trail results in vague steering and poor return. Too much trail can make transitions heavy and fatiguing.
The caster tool allows drivers to explore this balance digitally before making physical adjustments.
Eliminating Alignment Guesswork
Traditional alignment tuning often involves trial and error.
Adjust, test, repeat.
GripDial’s caster visualizer compresses this process by showing cause and effect instantly.
Built as a Learning Tool, Not Just a Calculator
This tool is not designed to spit out a “correct” caster number.
It is designed to teach how caster, trail, hub position, and tire size interact.
That understanding carries over to real-world setup decisions.
Why the Tool Is Free
GripDial believes that foundational suspension geometry should be accessible.
Drivers make better decisions when they understand the mechanics behind alignment changes.
This tool exists to raise that baseline.
From Alignment to Full Vehicle Insight
Caster affects steering behavior, which affects driver input, which affects telemetry interpretation.
By clarifying caster geometry, GripDial strengthens every other layer of vehicle analysis.
Conclusion – Seeing Steering Geometry Instead of Guessing It
Caster is not magic. It is geometry.
GripDial’s free caster tool makes that geometry visible, measurable, and intuitive.
When drivers understand why a change works, they stop chasing numbers and start engineering outcomes.
