Ackermann is one of the most debated topics in drifting.
Drivers hear terms like positive Ackermann, negative Ackermann, and zero Ackermann thrown around without ever seeing what those settings actually do.
Toe settings add another layer of confusion, especially when combined with high steering lock.
GripDial’s free Ackermann and toe visualizer was built to make steering geometry visible instead of theoretical.
Ackermann Is a Relationship, Not a Number
Ackermann does not exist as a single value.
It describes the relationship between the inner and outer front wheel angles as the steering wheel is turned.
Positive Ackermann means the inner wheel turns more than the outer. Negative Ackermann means the opposite.
Understanding that relationship is far more important than memorizing labels.
Why Visualizing Inner vs Outer Angles Matters
Most alignment discussions stop at static measurements.
In reality, steering behavior changes continuously as lock increases.

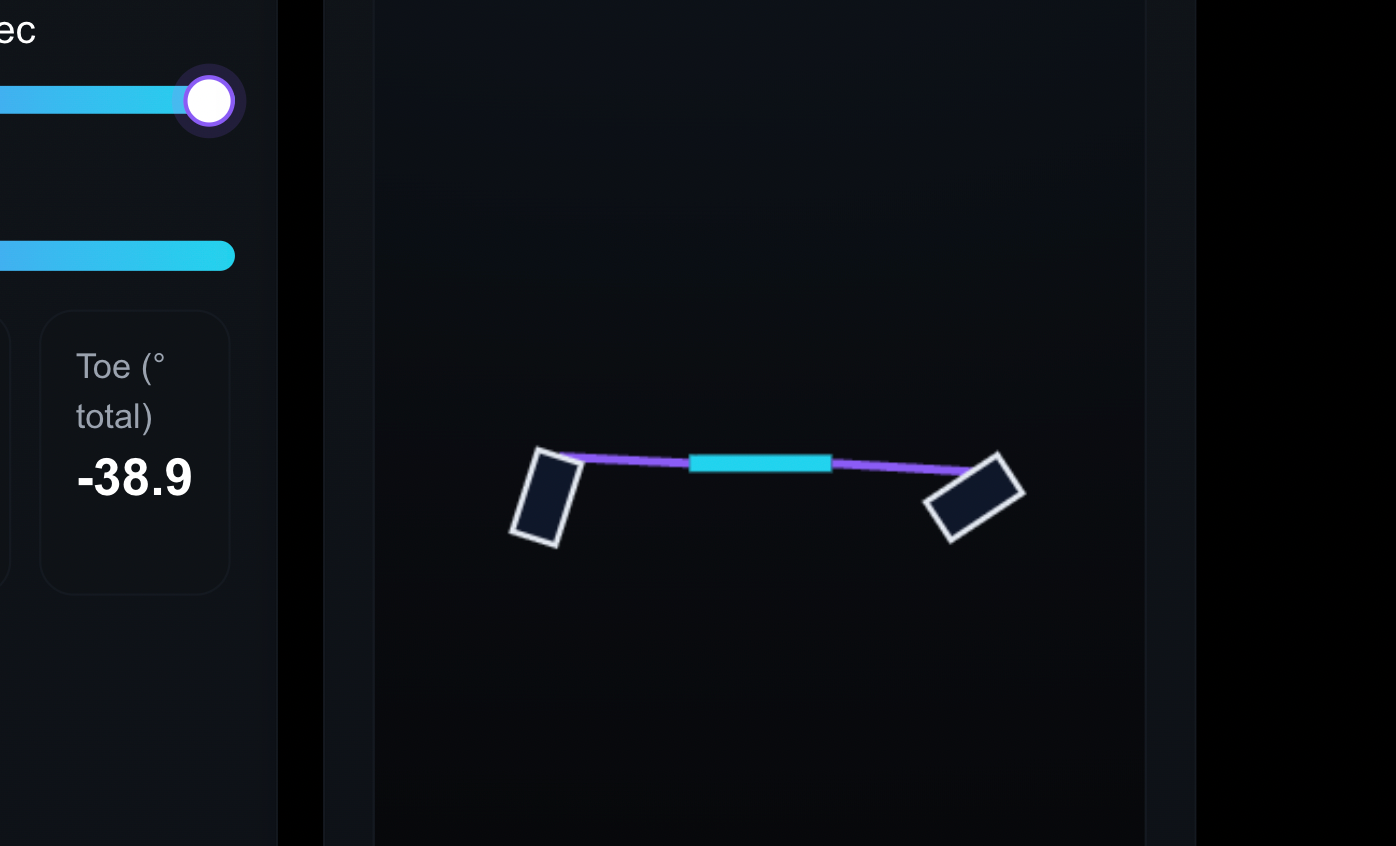

GripDial’s visualizer calculates inner and outer wheel angles dynamically as steering input changes, displaying the difference in real time.
This shows how Ackermann settings behave throughout the entire steering range, not just at center.
Toe Does Not Disappear at Lock
Toe is often treated as a static alignment setting that only matters near center.
In drifting, toe interacts with steering angle continuously.
The GripDial tool applies total toe across both wheels and shows how it alters effective wheel angles at lock.
This reveals why small toe changes can dramatically affect transitions and stability.
Why Steering Lock Changes Everything
High steering lock amplifies geometric effects.
Differences that seem minor at low angles become significant near full lock.
The visualizer allows maximum steering angle to be adjusted, making it clear how Ackermann and toe behave at realistic drift angles rather than idealized street alignment values.
From Rack Position to Wheel Angle
The tool models the steering system in simplified form, with a fixed rack housing, tie rods, and front wheels represented geometrically.
As steering input changes, the system calculates resulting wheel angles rather than assuming equal movement.
This approach mirrors how real steering systems behave under load.
Positive vs Negative Ackermann in Drifting
Positive Ackermann traditionally improves low-speed turning and reduces tire scrub.
Negative Ackermann is often used in drifting to balance tire slip at high angles.
The GripDial visualizer does not label one as correct.
Instead, it shows exactly how each setting affects wheel angles so drivers can decide based on their driving style and track conditions.
Why Zero Ackermann Is Rarely Neutral
Zero Ackermann sounds balanced, but in practice it simply means both wheels turn equally.
Depending on tire size, grip level, and steering angle, this can still create imbalance.
Seeing the geometry unfold makes this immediately apparent.
Understanding Angle Delta
One of the most useful outputs of the tool is the angle delta between inner and outer wheels.
This value quantifies how aggressively Ackermann is influencing the steering.
Drivers can now compare setups objectively rather than relying on subjective descriptions.
Why This Tool Is Built for Learning
The goal of the Ackermann and toe visualizer is not to recommend a setup.
It is to teach how steering geometry works.
By adjusting sliders and watching the system respond, drivers build intuition that carries over to real-world adjustments.
Drifting Demands Steering Awareness
In drifting, steering geometry dictates how the car transitions, holds angle, and recovers.
Misunderstood Ackermann settings often lead to chasing problems elsewhere in the setup.
GripDial removes that confusion by making steering behavior explicit.
Why the Tool Is Free
GripDial believes that understanding steering geometry should not require trial and error on track.
Providing this tool freely raises the baseline knowledge of the community.
Better understanding leads to better decisions.
From Steering Geometry to Full Telemetry Context
Steering behavior influences driver input, tire loading, and telemetry interpretation.
By clarifying Ackermann and toe behavior, GripDial strengthens every layer of vehicle analysis.
Conclusion – Seeing Steering Instead of Guessing It
Ackermann and toe are not mysteries.
They are geometric relationships that can be visualized and understood.
GripDial’s free Ackermann and toe visualizer turns steering setup from folklore into engineering.
